The Baltimore Return lever with inbuilt privacy lock features sleek lines and is fire-rated to 2 hours, making it the perfect option for any commercial project. Available in selected finishes and complementing the Baltimore range of products.
60mm tube latch to suit inbult privacy is provided.
Please note that the Baltimore Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team.
What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual
Notes
All Baltimore return levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC.

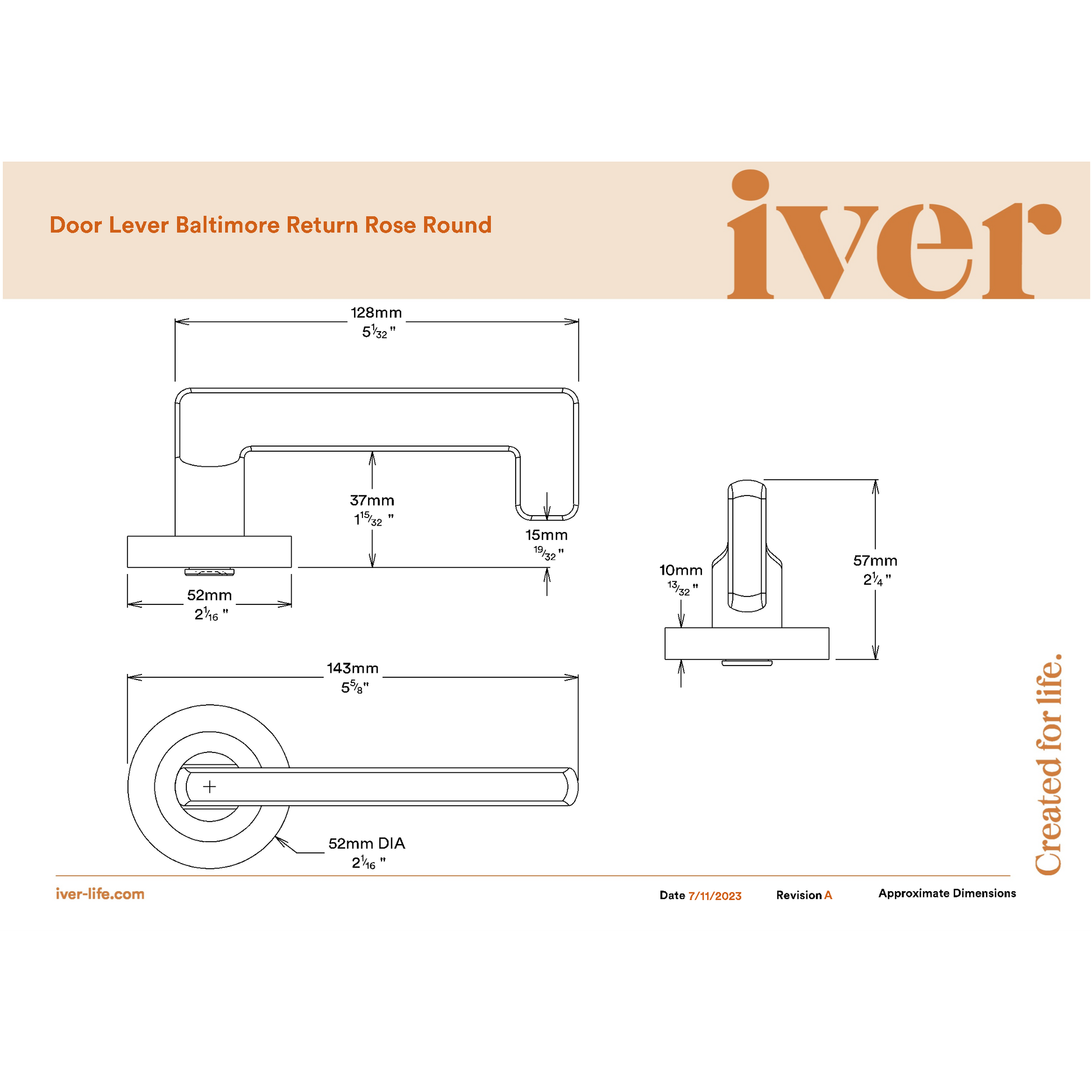

Specifications
Manufacturer: Iver
Part code: 20785KIBPRIV60
Material: Solid Brass and steel
Screws: Included
Height: 58mm
Width: 58mm
Length: 128mm
Projection: 57mm
Centre to centre: 41.5mm
