The simple rounded form of the Cambridge references the Victorian era of design, while providing a high level of versatility for application in a number of different settings. The Cambridge is perfectly suited to a concealed fix rose or a variety of different backplates.
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.
What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 5 Pin Dual Function Key/Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Notes
All Cambridge knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

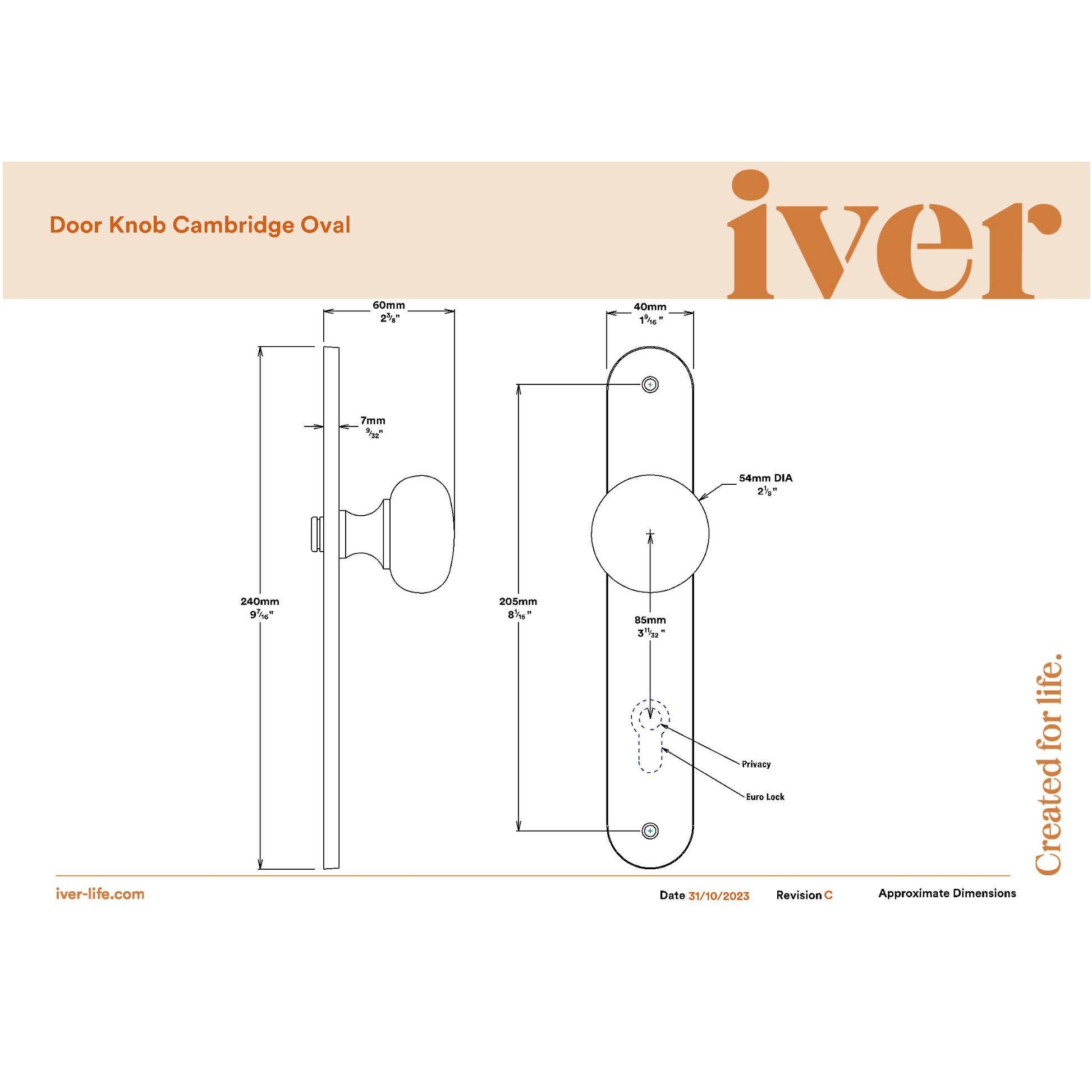

Specifications
Manufacturer: Iver
Part code: 11834KENTR60KT
Material: Solid Brass & Steel
Screws: Included
Backset: 60mm
Height: 240mm
Width: 40mm
Length: 240mm
Projection: 60mm
Centre to centre: 205mm
