The simple rounded form of the Cambridge references the Victorian era of design, while providing a high level of versatility for application in a number of different settings. The Cambridge is perfectly suited to a concealed fix rose or a variety of different backplates.
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.

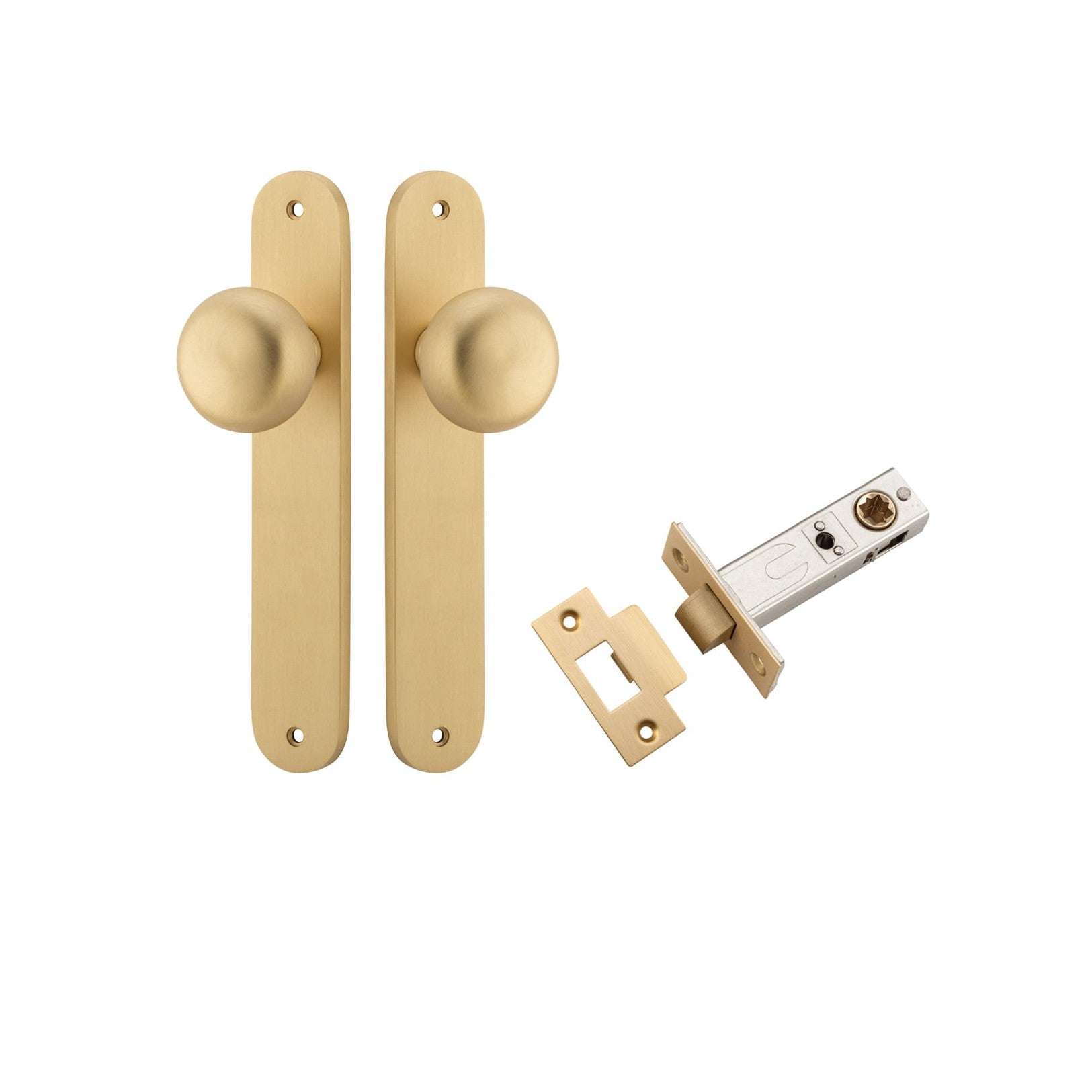

What's in the box
2 x Levers / Knobs on Backplates of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
15 x Screws
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Notes
All Cambridge knobs and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

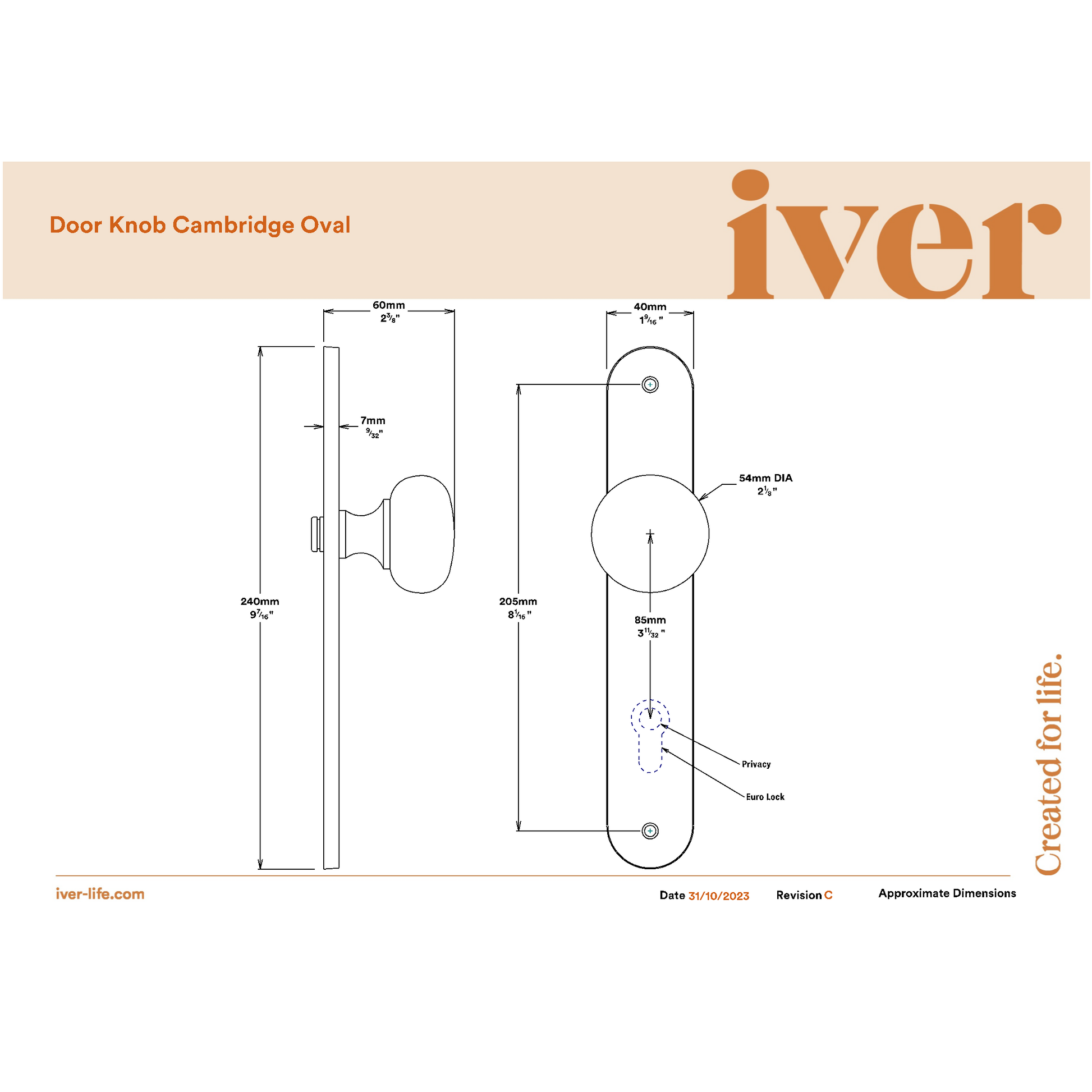

Specifications
Manufacturer: Iver
Part code: 15334KPASS60
Material: Solid Brass & Steel
Screws: Included
Backset: 60mm
Height: 240mm
Width: 40mm
Length: 240mm
Projection: 60mm
Centre to centre: 205mm
